GUARD DOG ROTATING BOAT ROD HOLDER PLATE KIT

GUARD DOG BOAT ROTATING ROD HOLDER PLATE KIT -

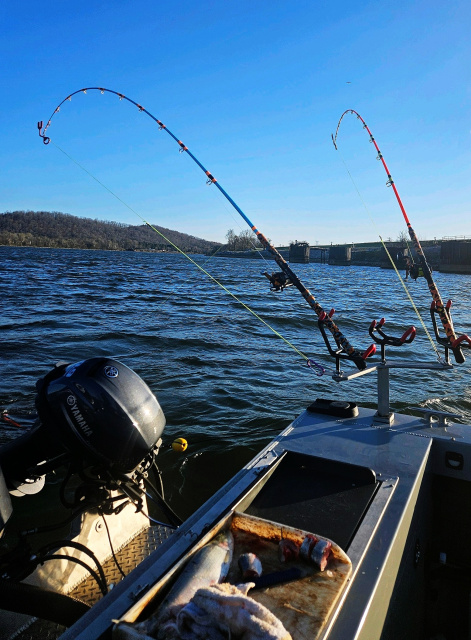

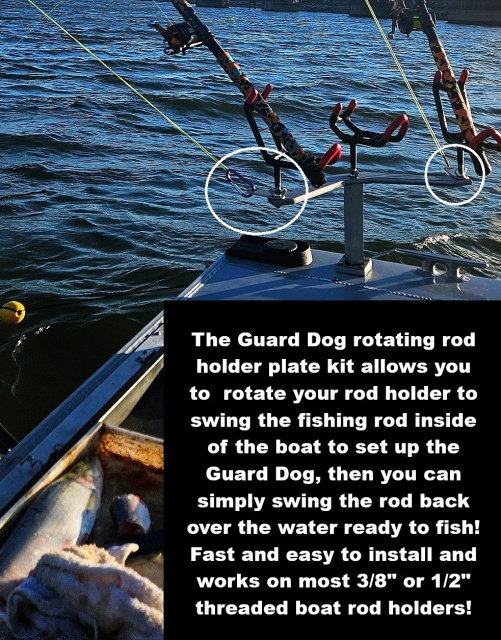

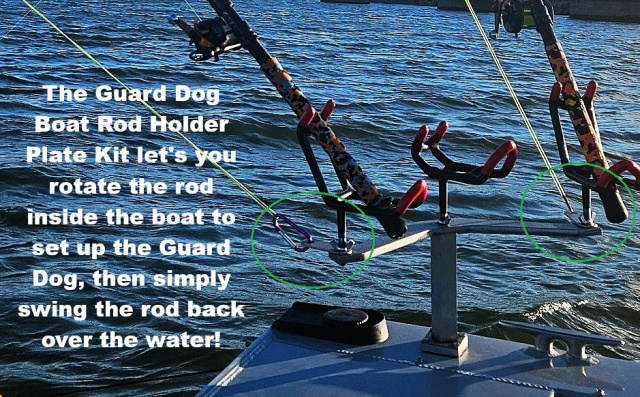

THIS ROD HOLDER PLATE KIT WILL ALLOW YOU TO EASILY ROTATE YOUR FISHING ROD INSIDE OF YOUR BOAT TO SET UP YOUR GUARD DOG, THEN SIMPLY SWING THE FISHING ROD BACK OUT OVER THE WATER AND YOU'RE READY TO FISH! VERY FAST AND EASY TO SET UP! WORKS WITH MOST ALL STANDARD 3/8 INCH AND 1/2 INCH THREADED ROD HOLDERS.



KIT INCLUDES:

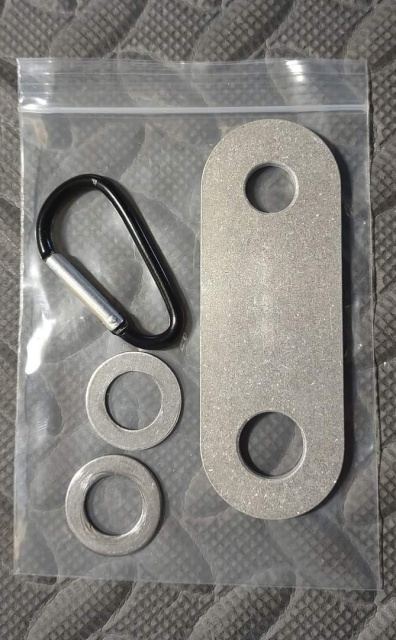

ALUMINUM ROD HOLDER PLATE, TWO STAINLESS STEEL WASHERS, AND CARIBINER CLIP







____________________________________________________________________________________________________



INSTRUCTIONS:

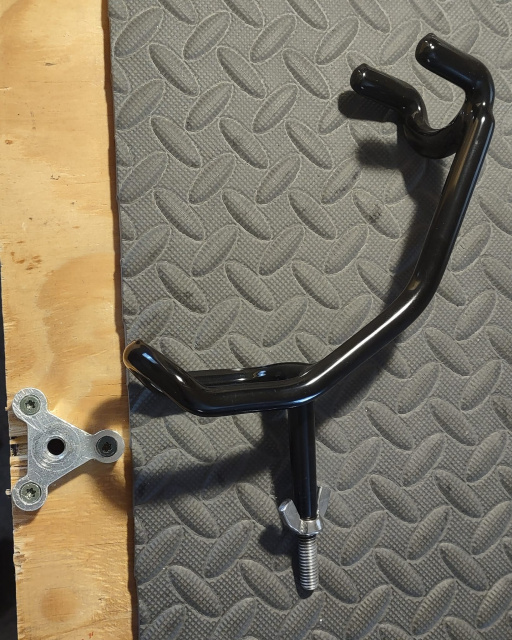

1. REMOVE YOUR BOAT ROD HOLDER/S FROM YOUR BOAT’S T-BAR OR BASE PLATE.

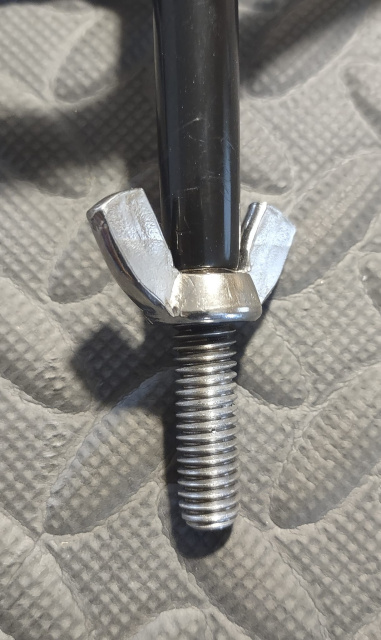

2. ADJUST YOUR ROD HOLDER TOP LOCK-DOWN NUT, (WE RECOMMEND USING A THUMB NUT), UNTIL THE NUT IS THREADED ALL THE WAY UP TO TOP OF ROD HOLDER THREADS.

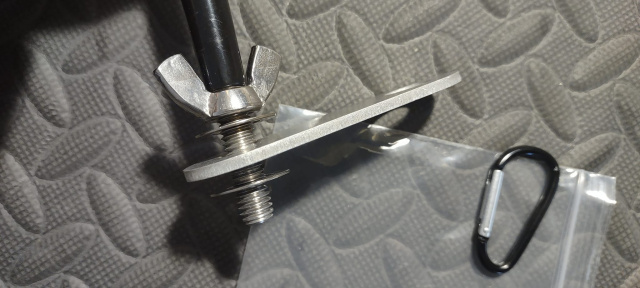

3. SLIDE ONE WASHER ONTO YOUR ROD HOLDER THREADS, SLIDE THE GUARD DOG ROD HOLDER PLATE (USING THE CORRECT SIZE HOLE), ONTO THE ROD HOLDER THREADS, THEN SLIDE THE SECOND WASHER ONTO THE ROD HOLDER THREADS.

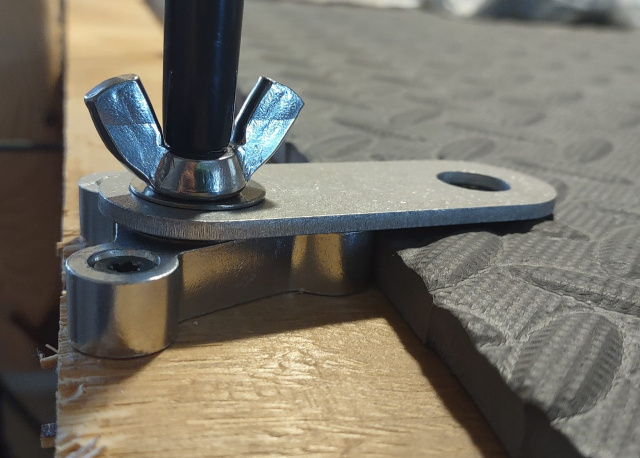

4. WITH THE WASHERS AND THE GUARD DOG ROD HOLDER PLATE IN PLACE, NOW SCREW YOUR ROD HOLDER BACK ONTO YOUR T-BAR OR ROD HOLDER BASE PLATE UNTIL THE ROD HOLDER IS "SNUG TIGHT".

5. NOW... FULLY ROTATE AND "LOOSEN" YOUR ROD HOLDER ONE FULL TURN, (THIS WILL ALLOW YOUR ROD HOLDER AND GUARD DOG ROD HOLDER PLATE TO ROTATE AND SWING FREELY).

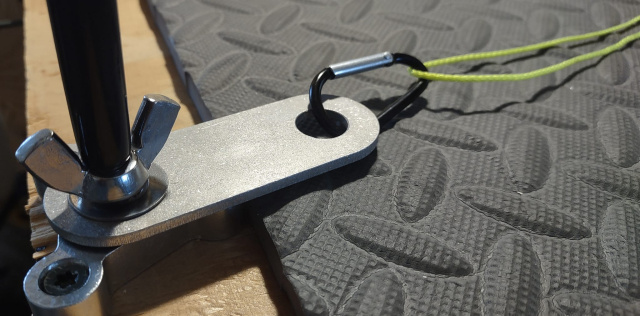

6. ATTACH THE CARIBINER TO THE OPEN HOLE IN THE GUARD DOG ROD HOLDER PLATE.

7. ATTACH THE GUARD DOG TENSION STRING TO THE CARIBINER.
